Biomonitor
ECG EMG and motion
Wireless system to analyse and monitor ECG,EMG singals combined with motion
Bio monitor
BioMonitor allows you to capture, represent and analyze ECG signals (in one or three leads) or the activation intensity in a muscle group (EMG) combined with acceleration, angular velocity and inclination values in three axes.
The system through the mobile application offers values such as: heart rate (mean, maximum, minimum), arrhythmia (Lorentz plot), steps, meters, jumps, time percentage in certain postures / live positions or the analysis of recorded data.
Signal analysis can be performed dynamically by applying multiple chain filters to the original IIR, FIR, and wavelet signal
Sensing features
- Acceleration
- Angular velocity
- Inclination in 3 axis
- ECG/EMG
- Electrode detection
- Temperature

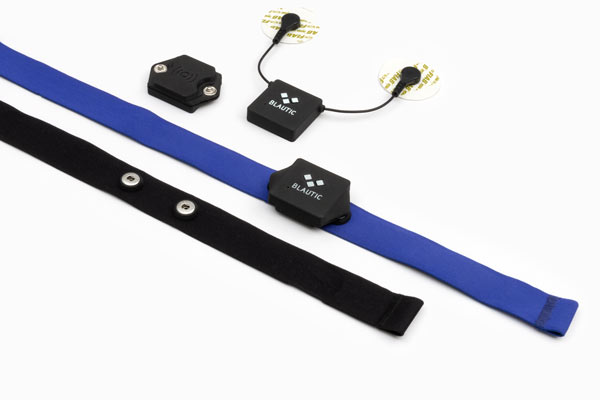

Biomonitor System

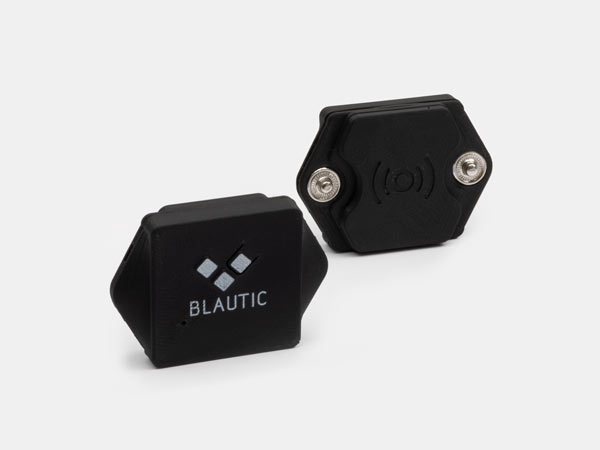

Device with bands
Wireless electronic device with movement and temperature sensors and connectivity with body electrodes

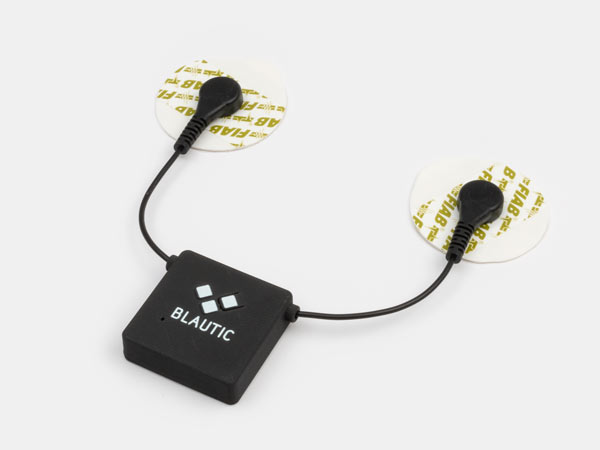

Device electrodes
Individual electrodes or ellastic band

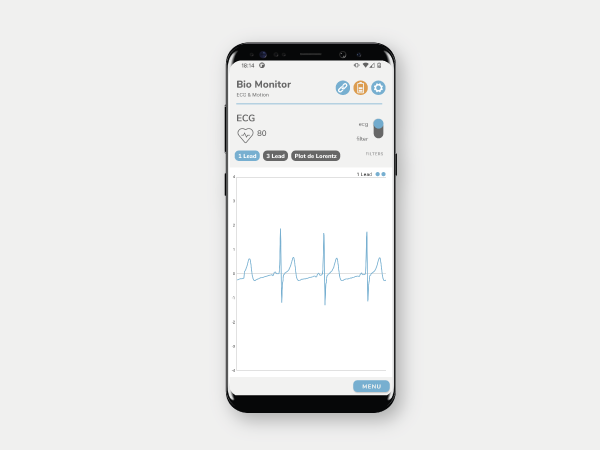

APP
Android APP for manage the device and analyse the signals, store the the results and export the data
Who is using Biomonitor?
Blautic has extensive experience in project development with universities, technological institutes, and private companies, both nationally and internationally. Among the most important projects carried out in the field of biosensors to gather biometric signals the following can be mentioned:
Features
- Qi wireless recharge
- Automatic detection of electrodes
- On/off from button and APP
- Status led
- APP configuration
- Live data
- Integration with propietary systems
Data and filters
- ECG signal with analysis through filters
- IIR filters: order and frequencies settings
- FIR filters
- Wavelet filters
- HR and arrithmia periods
- EMG and ECG signal display
| BioMonitor 1 lead | BioMonitor 3 leads | |
|---|---|---|
| Power | LiPo battery. Wireless Qi rechargeable | LiPo battery echargeable with microUSB |
| Autonomy | 12 hours with full data transmission | |
| Indicators | Status blue led | Status blue led Recharge red led |
| Communications | Wireless 4.2 Distance: 20-30 meters depending on the environment |
Wireless 5.2 Distance: 100-120 meters depending on the environment |
| Sensors | Sensor ECG/EMG/Respiration Rate ADC of 24bit, delta-sigma, multichannel with programmable gain amplifiers (PGA).Accelerometer of 3 axis Scale ±2g to ±16g Gyroscope 3 axis Scale ±500º/s to 2000º/s |
Sensor ECG/EMG 3 channels ofr ADC of 24bit, delta-sigma, delta-sigma, multichannel with programmable gain amplifiers (PGA).Accelerometer of 3 axis Scale ±2g to ±16g Gyroscope 3 axis Scale ±500º/s to 2000º/s |
| Connectors | Connection to electrodes trhough band or cables with snap buttons | |
| Interaction | 1 pulsador | |
Android APP Biomonitor
Android
Download the APP through the QR code or clicking on this link
