Heated

Heated

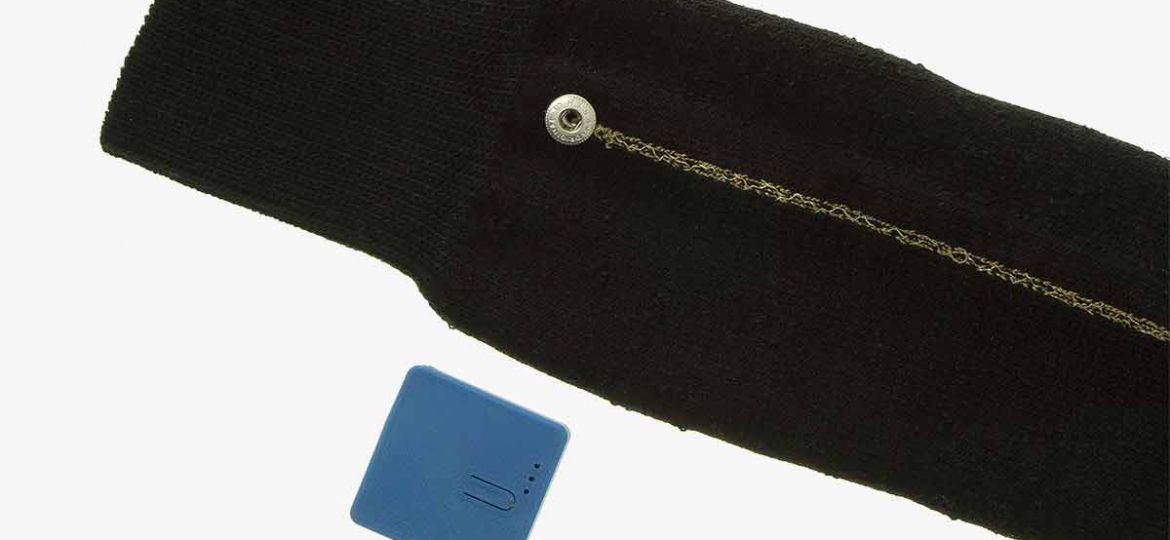

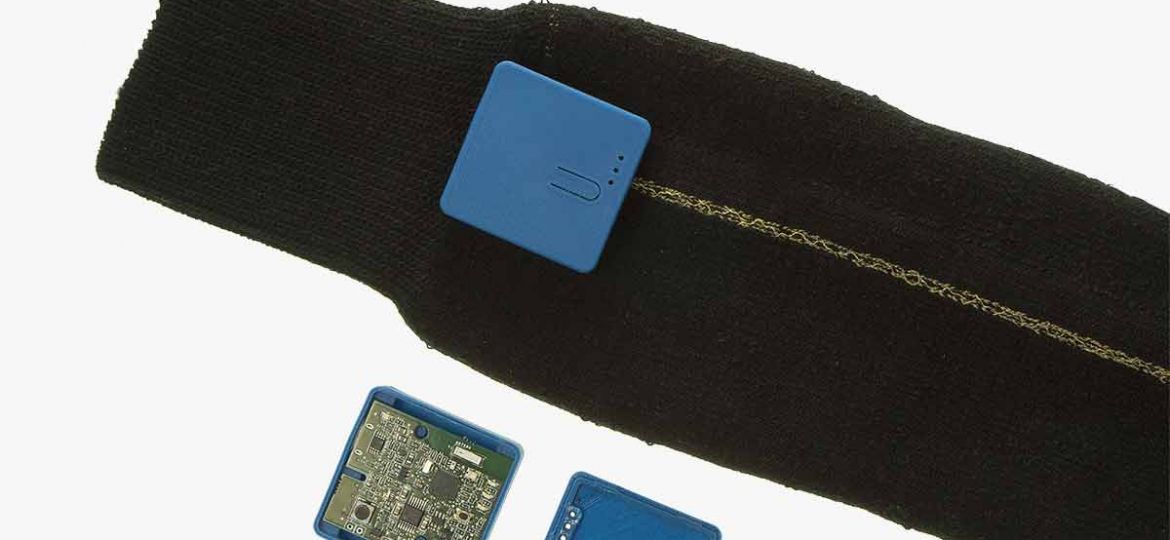

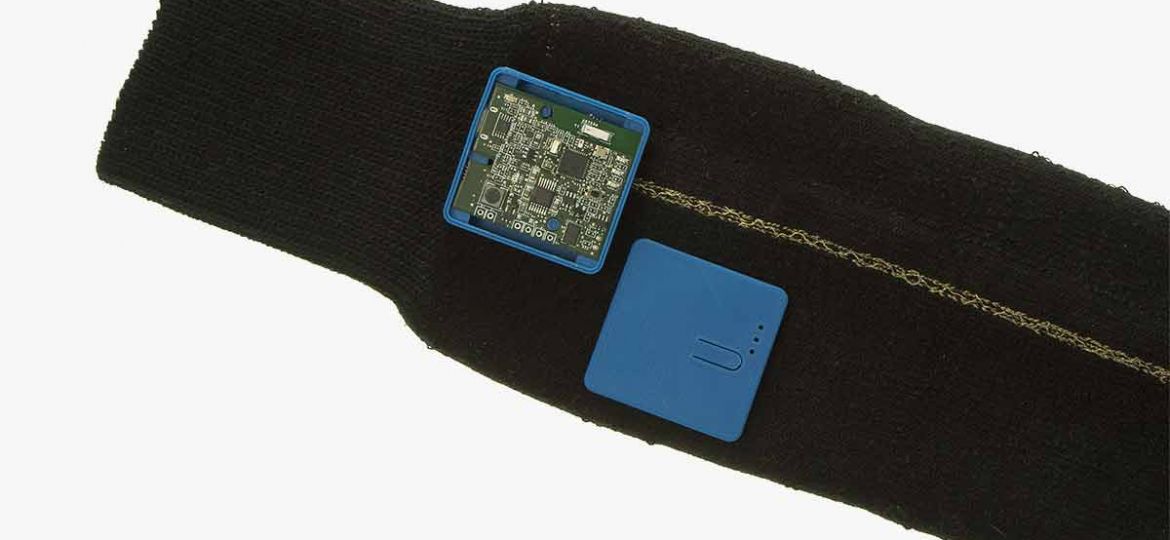

Partner of Aitex to create a device to heat e-textiles. Smartphone control and configuration.

Hardware

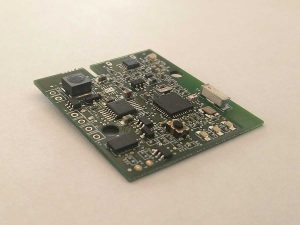

PCB design of reduced dimensions powered with rechargeable battery and mobile phone configurable.Capable of generating outputs of 5-20v or controlled current up to 150mA.

Firmware

Embedded firmware to monitor operations and allow remote configuration.

Sensore

High precision current sensor and basic accelerometer to control movement. Beacon generator.

Software

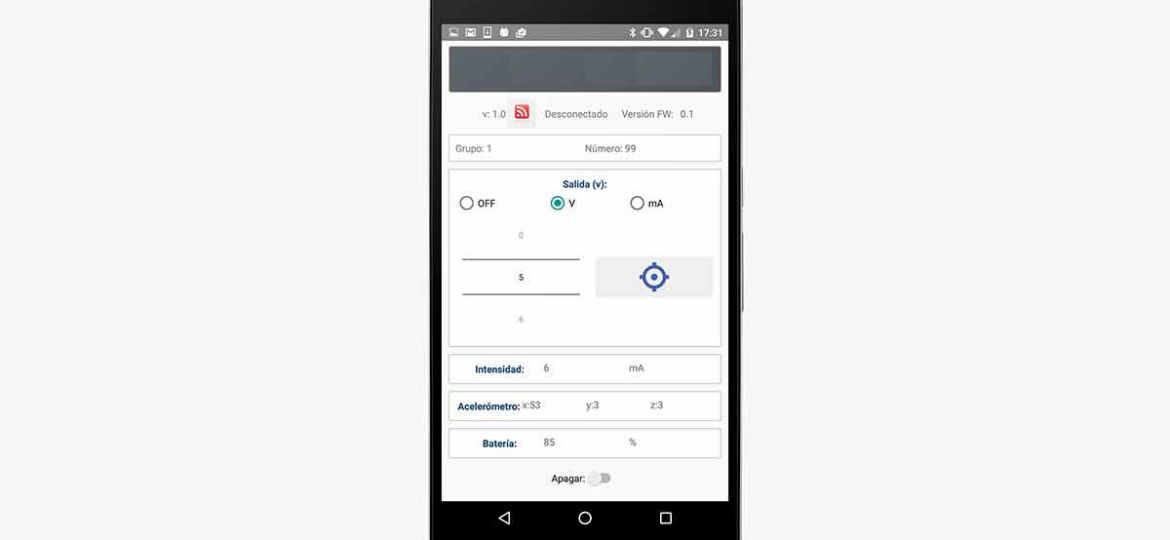

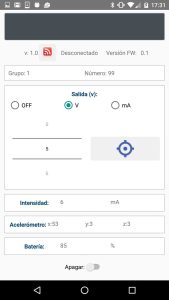

Android APP to configure and control the device: operational modes, output voltage, maximum intensity, time.

Enclosure

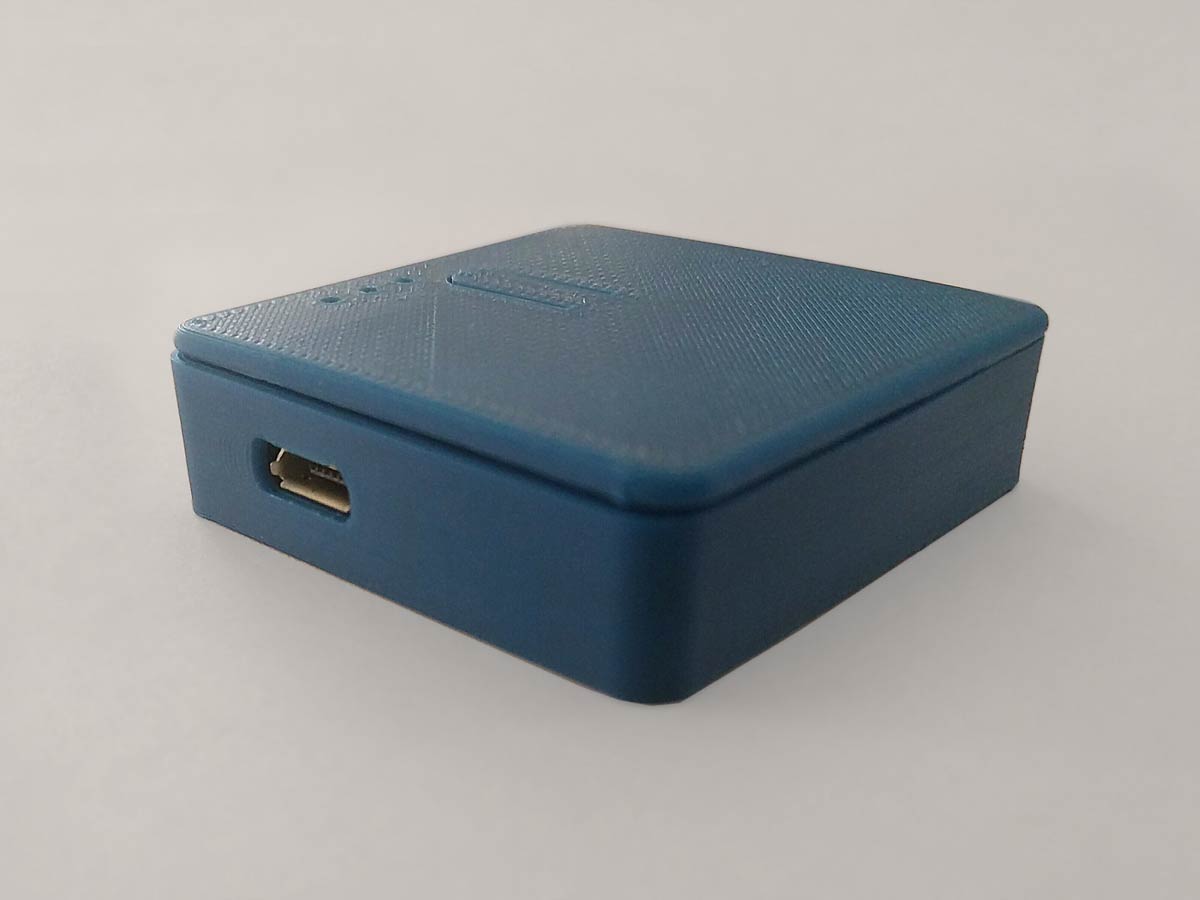

Custom box in ABS with usb access, led indicators and push button.

Do you need to heat textiles and control it wirelessly ?

Contact

Project details

Technical Specs

Hardware Reference platform: Blautic C1 Power LiPo battery Micro USB DC de 5 V Push button to control operations 3 LEDs to indicate operation Communications Wireless communications Beacon generation Inputs/Outputs Textile connection Size: Dimensions :32 x 38 mm (W x L)
Smartphone/Tablet:
Recommended screen size: 5,5”
Android 4.3 or higher
Bluetooth® 4.0 or higher
Sensors:
Accelerometer  3 axis STM (±2g)
Current: Texas Instruments
